单电堆

2电堆

3电堆

4电堆

5电堆

8电堆

10电堆

型号

AEMS20a-1cell

AEMS20a-2cell

AEMS20a-3cell

AEMS20a-4cell

AEMS20a-5cell

AEMS20a-8cell

AEMS20a-10cell

电堆尺寸

160x160x33mm

160x160x37mm

160x160x41mm

160x160x45mm

160x160x49mm

160x160x61mm

160x160x69mm

电堆数

1

2

3

4

5

8

10

电压范围

1.6-2.5V

3.2-5V

4.8-7.5V

6.4-10V

8-12.5V

12.8-20V

16-25V

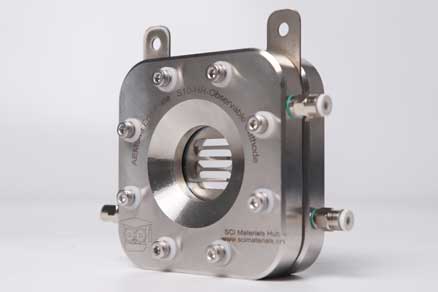

金属端板电堆实物图

非实物图

非实物图

电流密度

0.6-3A/cm²

流道尺寸

44.8x44.8mm（科学材料站推荐使用稍大的电极，如50x50mm，以避免催化剂脱落堵塞流道孔）

端板材质

常规款（标配）、可观测款（选配）、耐腐蚀不锈钢（选配+￥1000）

阴离子交换膜（不包含）

电极材料

见配件表（不包含）

电解质

碱液（KOH, 1M）

工作温度

15~80℃（最高温度取决于用户催化剂和隔膜）

不锈钢端板

不锈钢可观测端板

PTFE阳极垫片 (100/200/250/300/400/500/1000μm)

PTFE阴极垫片 (100/200/250/300/400/500/1000μm)

FKM阳极垫片 (100/200/250/300/400/500/1000μm)

FKM阴极垫片 (100/200/250/300/400/500/1000μm)

PE硬管 (内径1/16" , 外径1/8")

普通硅胶软管 (内径1.6mm，外径

4.8mm) 用于蠕动泵

Teflon硬管 (内径1/16" , 外径1/8")

蠕动泵耐腐蚀软管 (内径1.6mm

外径4.8mm)

ABS螺栓 (内径3.2mm)

PTFE螺栓 (内径3.2mm)

PEEK螺栓 (内径3.2mm)

镍基快插螺栓 (内径3.2mm)

不锈钢螺母

不锈钢垫片

倒刺管路接头用于内径1-2mm管路

快速插拔管路接头用于外径1/8"管路

扭矩扳手+套筒 (1-25 Nm)

不锈钢螺栓

肩部垫圈

螺栓绝缘管 (厚度 0.5mm)

螺栓绝缘管 (厚度 1mm)

25A大电流鳄鱼夹导电线

0.5米; 1米

1.5米; 2米

25A大电流香蕉头转鳄鱼夹导电线

0.5米; 1米

1.5米; 2米

35A大电流香蕉头转鳄鱼夹导电线

0.5米; 1米

1.5米; 2米

40A Ring-Ring导电线

0.5米; 1米

1.5米; 2米

温控系统 (加热片x2个、温控盒x1个、空气开关x1个、热电偶x1个、精度0.1°C)

加热片加热片

加热片助粘剂, 25ml

O型圈套件

常规扳手套件

VHP01真空加热台

配套单通道小型蠕动泵

配套单通道蠕动泵

配套双通道蠕动泵

配套齿轮泵

不锈钢弹片

导电铜柱

PP等径宝塔软管接头

DI016软管内径Φ1-Φ1.6mm

DI024软管内径Φ1.6-Φ2.4mm

DI032软管内径Φ2.4-Φ3.2mm

DI040软管内径Φ3.2-Φ4mm

DI048软管内径Φ4-Φ4.8mm

PP变径宝塔软管接头

软管内径Φ1.6↔Φ2.4

软管内径Φ1.6↔Φ3.2

软管内径Φ2.4↔Φ3.2

软管内径Φ2.4↔Φ4

软管内径Φ3.2↔Φ4

PE等径硬管接头

硬管外径Φ3-Φ3mm

硬管外径Φ3.2-Φ3.2mm

硬管外径Φ4-Φ4mm

硬管外径Φ6-Φ6mm

PE变径硬管接头

硬管外径Φ3-Φ3.2mm

硬管外径Φ3-Φ4mm

硬管外径Φ3-Φ5mm

硬管外径Φ3-Φ6mm

硬管外径Φ3.2-Φ4mm

硬管外径Φ3.2-Φ6mm

PTFE耐腐蚀软硬管转接头

硬管外径Φ3.2mm↔软管内径Φ1.6mm

硬管外径Φ3.2mm↔软管内径Φ2.4mm

硬管外径Φ3.2mm↔软管内径Φ3.2mm

硬管外径Φ3.2mm↔软管内径Φ4mm

PTFE耐腐蚀等径硬管接头

Φ3mm↔Φ3mm

Φ3.2mm↔Φ3.2mm

Φ4mm↔Φ4mm

Φ6mm↔Φ6mm

Φ8mm↔Φ8mm

PTFE耐腐蚀变径硬管接头

Φ3mm↔Φ3.2mm

Φ3mm↔Φ4mm

Φ3mm↔Φ6mm

Φ3.2mm↔Φ4mm

Φ4mm↔Φ6mm

316L等径接头

Φ3mm↔Φ3mm

Φ3.2mm↔Φ3.2mm

Φ4mm↔Φ4mm

Φ6mm↔Φ6mm

Φ8mm↔Φ8mm

316L变径接头

Φ3mm↔Φ3.2mm

Φ3mm↔Φ4mm

Φ3mm↔Φ6mm

Φ4mm↔Φ6mm

密封型气液分离器

PMMA

PTFE

PEEK

NexIonic® A50

NexIonic® A80

NexIonic® A100

Youveim® Ni fiber paper

Youveim® SS fiber paper

DiffuCarb® CP-A210R raw carbon paper

DiffuCarb® CP-A330R raw carbon paper

DiffuCarb® CP-A400R raw carbon paper

DiffuCarb® CP-H450R raw carbon paper

DiffuCarb® CP-H850R raw carbon paper

Youveim® Ti fiber paper

Youveim® Ti screen

Youveim® Platinized Ti fiber paper

Youveim® Platinized Ti screen

Anode

GDE

Youveim® E100H NiFeOx-SS fiber paper with hydrophilic interface

Youveim® E100T NiFeOx-SS fiber paper with hydrophobic interface

Youveim® E100G NiFeOx-Gold Plated SS fiber paper with hydrophobic interface

Youveim® E102 NiFeOx-Ti Fiber Paper

Youveim® E102PT NiFeOx-Platinized Ti Fiber Paper

Youveim® E103 NiFeOx-Ni Fiber Paper

Youveim® E103G NiFeOx-Gold Plated Ni Fiber Paper

Youveim® E103PT NiFeOx-Platinized Ni Fiber Paper

Youveim® E104G NiFeOx-Gold Plated Ni Foam

Youveim® E104PT NiFeOx-Platinized Ni Foam

Youveim® E110H CoFeOx-SS fiber paper with hydrophilic interface

Youveim® E110T CoFeOx-SS fiber paper with hydrophobic interface

Youveim® E110G CoFeOx-Gold Plated SS fiber paper with hydrophobic interface

Youveim® E112 CoFeOx-Ti Fiber Paper

Youveim® E112PT CoFeOx-Platinized Ti Fiber Paper

Youveim® E113 CoFeOx-Ni Fiber Paper

Youveim® E113G CoFeOx-Gold Plated Ni Fiber Paper

Youveim® E113PT CoFeOx-Platinized Ni Fiber Paper

Youveim® E114G CoFeOx-Gold Plated Ni Foam

Youveim® E114PT CoFeOx-Platinized Ni Foam

DiffuCarb® E300 IrO₂-carbon paper

DiffuCarb® E300T IrO₂-carbon paper with hydrophobic interface

DiffuCarb® E300H IrO₂-carbon paper with hydrophilic interface

Youveim® E301T IrO2-SS fiber paper with hydrophobic interface

Youveim® E301H IrO₂-SS fiber paper with hydrophilic interface

Youveim® E301PT IrO₂-Platinized SS fiber paper

Youveim® E301G IrO₂-Gold Plated SS fiber paper

Youveim® E303T IrO2-Ti fiber paper with hydrophobic interface

Youveim® E303H IrO₂-Ti fiber paper with hydrophilic interface

Youveim® E303PT IrO₂-Platinized Ti fiber paper

Youveim® E303G IrO₂-Gold Plated Ti fiber paper

Youveim® E305T IrO2-Nickel fiber paper with hydrophobic interface

Youveim® E305H IrO₂-Nickel fiber paper with hydrophilic interface

Youveim® E305PT IrO₂-Platinized Nickel fiber paper

Youveim® E305G IrO₂-Gold Plated Nickel fiber paper

Youveim® E309 IrO₂/Ti fiber paper

Youveim® E310 IrO₂/Platinized Ti fiber paper

Youveim® E311 Pt-IrO₂/Platinized Ti fiber paper

Youveim® E314 IrO₂/Ti screen

Youveim® E315 IrO₂/Platinized Ti screen

Youveim® E316 Pt-IrO₂/Platinized Ti screen

Youveim® E321 IrO₂/Platinized Ti foam

Youveim® E322 Pt-IrO₂/Platinized Ti foam

DiffuCarb® E330 Ir-carbon paper

DiffuCarb® E330T Ir-carbon paper with hydrophobic interface

DiffuCarb® E330H Ir-carbon paper with hydrophilic interface

Youveim® E340T Ir-Ti fiber paper with hydrophobic interface

Youveim® E340H Ir-Ti fiber paper with hydrophilic interface

Youveim® E341T Ir-Platinized Ti fiber paper with hydrophobic interface

Youveim® E341H Ir-Platinized Ti fiber paper with hydrophilic interface

Youveim® E343 Ir/Ti screen

Youveim® E344 Ir/Platinized Ti screen

Youveim® E345 Pt-Ir/Platinized Ti screen

Youveim® E347 Ir/Ti fiber paper

Youveim® E348 Ir/Platinized Ti fiber paper

Youveim® E349 Pt-Ir/Platinized Ti fiber paper

Youveim® E351 Ir/Ti foam

Youveim® E352 Ir/Platinized Ti foam

Youveim®E353 Pt-Ir/Platinized Ti foam

Cathode

GDE

Youveim® E120 FeCoNi-Ni fiber paper

DiffuCarb® E121 FeCoNi-carbon paper

Youveim® E130 Raney Ni-Ni screen

DiffuCarb® E200 Pt/C-carbon paper

Youveim® E210 Pt/C-Ti fiber paper

Youveim® E211 Pt/C-Platinized Ti fiber paper

Youveim® E214 Pt/C-Ti foam

Youveim® E215 Pt/C-Platinized Ti foam

DiffuCarb® E220 Pt black-carbon pape

Youveim® E230 Pt black-Ti fiber paper

Youveim® E233 Pt black-Platinized Ti fiber paper

Youveim® E235 Pt black-Ti foam

Youveim® E237 Pt black-Platinized Ti foam
